Linish:
Next on the agenda was to now linish all of the edges & surfaces of the Frames.
I'm using a special Scotchbrite Belt to remove all the various file marks & give the Frames a nice satin finish.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg6yMlLU7oCq3J2HPOorPM_a6998x7KScrHv7OzmTtWT6ZzhNYrWVlARUeg0roLtpsad5vAWOVs9FXgmzsj6PhiVggFSOapbgZ15koOuLcm96ZFtdMB8D79ksMnSaWRLY8TesGNniRMGF7a/s400/Build2-JollyOrders-2a.jpg) |
Frames laid out in preparation for their linishing. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjDmD_WjIw1F6EZ9LdhpUaXgQiFYji-1XpIai_6X-gnIP_J4mCyeaYKaG7qiK7xFnQs_BPkp-HrtiXP6DINMJJWvrQTaDE9Y3FF4C9v9m3cdFzGnEds3pouuPiPuGFTgURMN5KPZhInqXU0/s400/Build2-JollyOrders-2b.jpg) |
Frames on the left & the Scothbrite Belt all set up & ready to go |

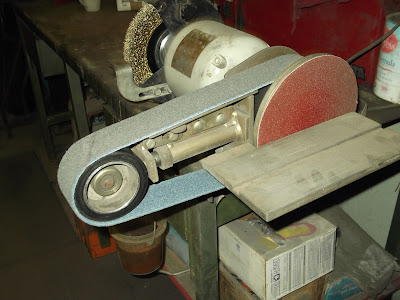

![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhiRomgnhh4aQQuua12FAwyb1qW_2RAmcS8PQPqC1lSMIVlUJhaXbLJ3B2cN4Emy8Jf5p_UowLpx4gNjrl-RI2Q4kcrTpL4c8z_SotkC1HgBCDuM_o_lMH0upM7S7bc-vz8YQtQJBAMjx6G/s400/Build2-JollyOrders-2c.jpg) |
Another view of that Scothbrite Belt used for linishing. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgj1JBbWxR5tgp6fbuZIdVJhu92ukSuGRusGbeuNUrmo1kZcKLxT38j1xsZlwb4eYZSP2scT8puGdvgnfRO3o8Ry9DALIiyFpSi7bZWTqLfvyPjVBAheXTlhTJ4TgnpB2aWmFURAbLJrZsT/s400/Build2-JollyOrders-2d.jpg) |
And so the linishing of the Frames begins. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEivzD5cUqyMSFqLpJe5gENddSP55Yb0JvFQFVzDznLHXPAqYwGsc2__aj8hn4y0ciO23jQvc0xDQlb8OlEFP6VK6eIzrYF_or5TF4ab64f061l_diNIh_85rcWDt_-1ts95o9mDSTq6Jt1V/s400/Build2-JollyOrders-2e.jpg) |

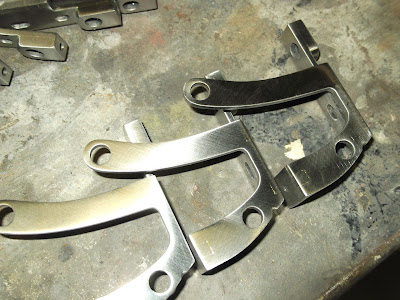

Closer view of the freshly linished Frames. |
Ream:
After all of the linishing is completed, I then go through & individually hand ream all the Tube holes.
This helps to ensure that both 5/16" & 8mm Tubes (of good quality) will fit correctly into my Machines.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh_pa7eaQKcAWnYiZ7kBv5QH_09pey1ZNbhuEHpRyPky0ifHfXm3Fuu5poEwp7mi96tS5IuK5VRG6HOJL8U3QYJMuKk-oEftM2e_JP2ZUON3t7_2EzgtQYqZL88Xvo-rsMf0jN1KilPQr7C/s400/Build2-JollyOrders-2f.jpg) |
To ensure a nice fit for Tubes, each Frame is individually hand reamed. |
Stamp:
I then go through & double check everything is square & aligned correctly.
Once I'm sure that each Frame is OK, I then individually stamp them C.CREED 2012
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh5ZtT75DgBP88PRBLcVwlnS9if0bHow2PXWpq3uxn6I8njPKBSEEm7fEAIrDNoJnUPVxjIUFYWp-1HDy3dJHZJBwrv0L83l0YBDetpDhrQS4Bi1Ul4k0xrY2LjHEgnQWSzeUArUzwThmqI/s400/Build2-JollyOrders-2h.jpg) |
Frame in position ready for it's stamping. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxW0YZczS6Ov3P-a6arqjrvlFeqN9-PR0YLq5C31wezNzxcpCYllXfWt3-ccjKRvHcjhp1nFTLZa475bDiHtyBTRKvyOy6RF1yXgkdY5Tl21vDhMb9VcRpiZiJgNCk_cqVd9g2ad-W-Zqs/s400/Build2-JollyOrders-2i.jpg) |
Apologies for slightly out of focus shot...but the stamp was good. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgBnkWBF5HdTnunuycYkXeXmIxQy5LUAAdVNhiR3wzY_3ne-H4PvsmDALM4d5zfqyz8JAujXhP8HQBMe47g3EDkwcVyDGmRJJmAxDf151racdzJDjV54U0xhiQX2oUtG2JiEIv5VmnyRP3p/s400/Build2-JollyOrders-2j.jpg) |
12 x Frames all completed & stamped. |
