Machine Building...comparing the "Testers"

I mentioned at the end of my last post...

"It'll be very interesting to directly compare just how close the two Machines fitted with Lucky Coils will run."

Well, I asked Justin from Eternal Ink to run some direct comparisons between both Machines...
...the Hugo Lucky Coil Tester & the new Lucky Coil Tester.

The two Thin Armature Machines that are fitted with Lucky Coils, sitting side by side.

Justin has run the Hugo Lucky Coil Tester for quite some time now & is really impressed with it...
Check out some of Justin's work using the "Hugo" Liner here & also here.
He's so impressed with this Thin Armature Machine that he hates having to give it back to me!

So what was the verdict from Justin of this new Lucky Coil Tester..?
..."It's pretty close, you can hardly tell any difference between them."

With that confirmation from Justin, I'll now move onto building all the new Orders using this Frame style.

The Hugo Lucky Coil Tester

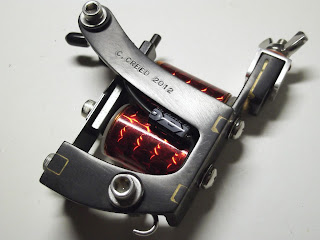

The new Lucky Coil Tester

Machine Building...new phase "Testers"

Lots been happening, so my apologies in advance for this being such a looong post.

Continuing with the new phase:
I've been working on those new smarter Fames so that I can get them up & running as a set of "Testers".
I figured that 4 x Frames should be enough to test & make sure that everything goes together & works well.

Choose any color, as long as it's Black:
I also decided to try out a new coating using these particular Frames...it's a Black Oxide finish.
This Black Oxide is a special treatment that only colors ferrous metals, in this case the steel Frames.
And all the welded seams show up as gold because I'm using Bronze, which is a non-ferrous metal.

The Testers will then go to Eternal Ink to be used daily & confirm that everything works as expected.
Once proven, this new style Frame will then replace those earlier "Hugo" Frames that I was making.

And all going well, this new Black Oxide will also replace that Clear coating used previously.

Here's a collection of photos showing the progression of these new Frames into Machines & into Testers.

Frames welded & now awaiting their Quickchanges

Frames fitted with Quickchanges & the new Black Oxide finish

Close up of Frame with Black Oxide finish & the Bronze weld seams

Next the assembly is started, Coils fitted & awaiting wiring

This Frame fitted with a set of Lucky Coils

Coils wired, Capacitors fitted & everything soldered

This Frame fitted with a set of Lucky Coils

Springs & Armatures for 3 x Frames

A special Tester, a Thin Armature Magnum...real Aussie Old School

This Tester, a Big Needle Liner

This Tester with the Lucky Coils, a Thin Armature Liner to directly compare against this one

There's still a bit of work to do on these Testers...one still needs a set of Springs made for it & then they'll each require some shimming & tuning.
It'll be very interesting to directly compare just how close the two Machines fitted with Lucky Coils will run.
